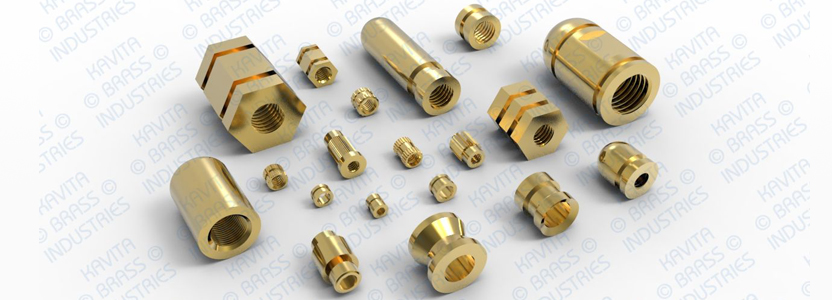

Brass Inserts

Inserts

Brass Knurling Inserts
Brass Wood Inserts
Brass Square Inserts
Round Knurled Inserts
Brass Hexagonal Inserts

Typical Application :

Instrumentation, Telecommunications, and other Plastic Cases Assembly.

Material

Free Cutting Brass IS 319 Type (I) or
Free Cutting Brass as per BS 249 Type (I) or
High Grade Free Cutting Brass.
Any Special Brass Material Composition as per customers requirement.

Length / Size :

Begins from M2 or equivalent threads and upto any size as per custom design or requirement.

Threads

ISO Metric (MM Threads)
BA Threads
BSW Threads (Inches)
UNC, UNF Threads
Any threads as per custom design.

Finish And Coating :

Natural, Nickle Plated, Tin Plated or any coating as per customer specification.

Special Features :

Threads as per Interantional Go & Not Go Standards.
Deep Goove for maximum Pull Out Resistance.
Inner Diameter (I/D) after Threads with very close tolerance to prevent unnecessary flush to enter into the inserts.

Any kind of special Inserts, Brass Insert Round Brass Knurled Insert Brass Hexagonal Insert Brass Square can be developed and supplied exactly as per customer specifications.
